Beam Grapher

⌘当前价格: 6
⌘支持系统: OS X 10.10
⌘服务支持: 官方页面

累计下载次数: 38

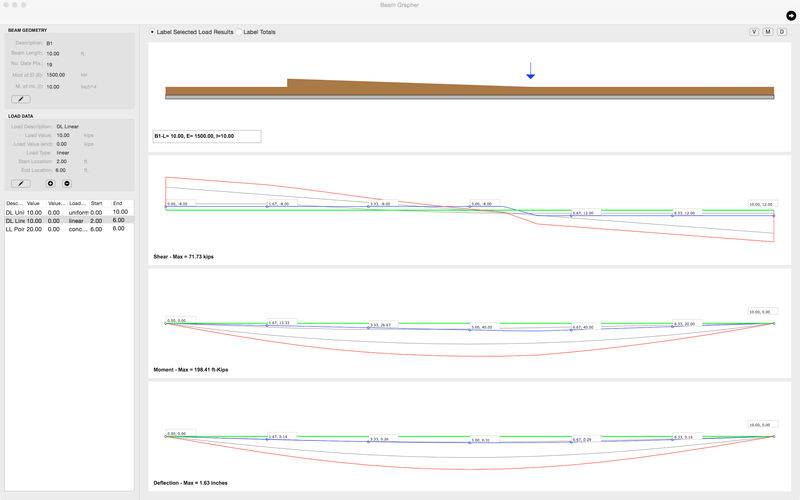

Beam Grapher is a simple beam analysis tool to quickly and efficiently determine moments, shears and deflections in a simply supported beam. Loads can be concentrated, uniform and partial uniform, as well as linear and partial linear. These load types cover the most commonly encountered load conditions in residential and low rise commercial structures. The results are produced for each load, or as a summation of all of the loads specified, and are produced in both graphical and tabular format as needed. An ideal tool to obtain beam forces in basement beams, floor joist, headers, lintels, and other simple structural components.
