Filter Designer

支持系统
OS X 10.6.6
价格
0
下载次数
385
官方网站

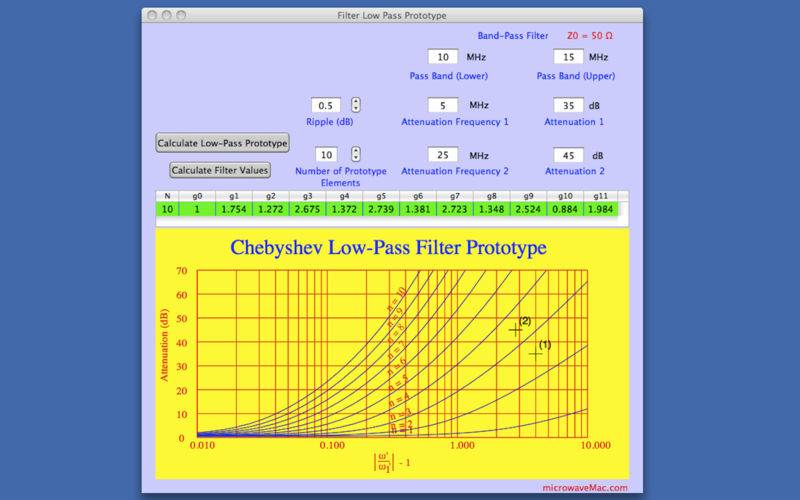

Filter Designer is an interactive Macintosh OS 10.7 (Lion) or greater application which allows the designer to enter electronic filter specifications and subsequently obtain the element values. Low-pass, high-pass, band-pass and band-stop lumped element filters in Butterworth, Chebyshev, and Bessel configurations are supported. S-Parameter analysis of the filter is performed, and a schematic generated.
